Bush Specialty Vehicles creates customized mobile solutions that enable you to serve your customers better. We look forward to supporting your success and the growth of your business for a long time to come.  In order to help maximize the success of your mobile vehicles, we’ve created this secure site with the following mutual goals in mind:

  1. To ensure you have the proper training on how to best use and maintain this vehicle and the equipment it contains
  2. To provide you with full warranty coverage information
  3. To provide you with the designated Bush Specialty Vehicles point of contact should you have any additional needs or questions
  4. To answer common questions and provide resolution to frequently experienced issues in the use of these vehicles and equipment

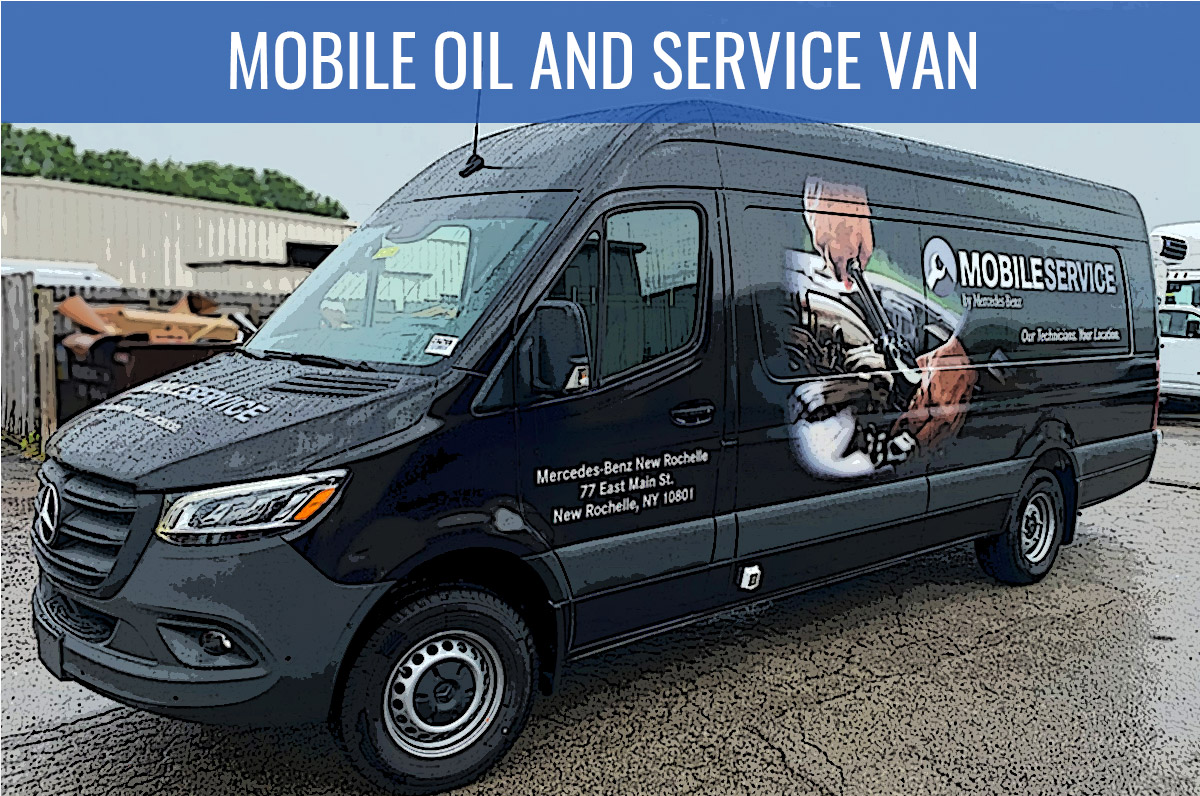

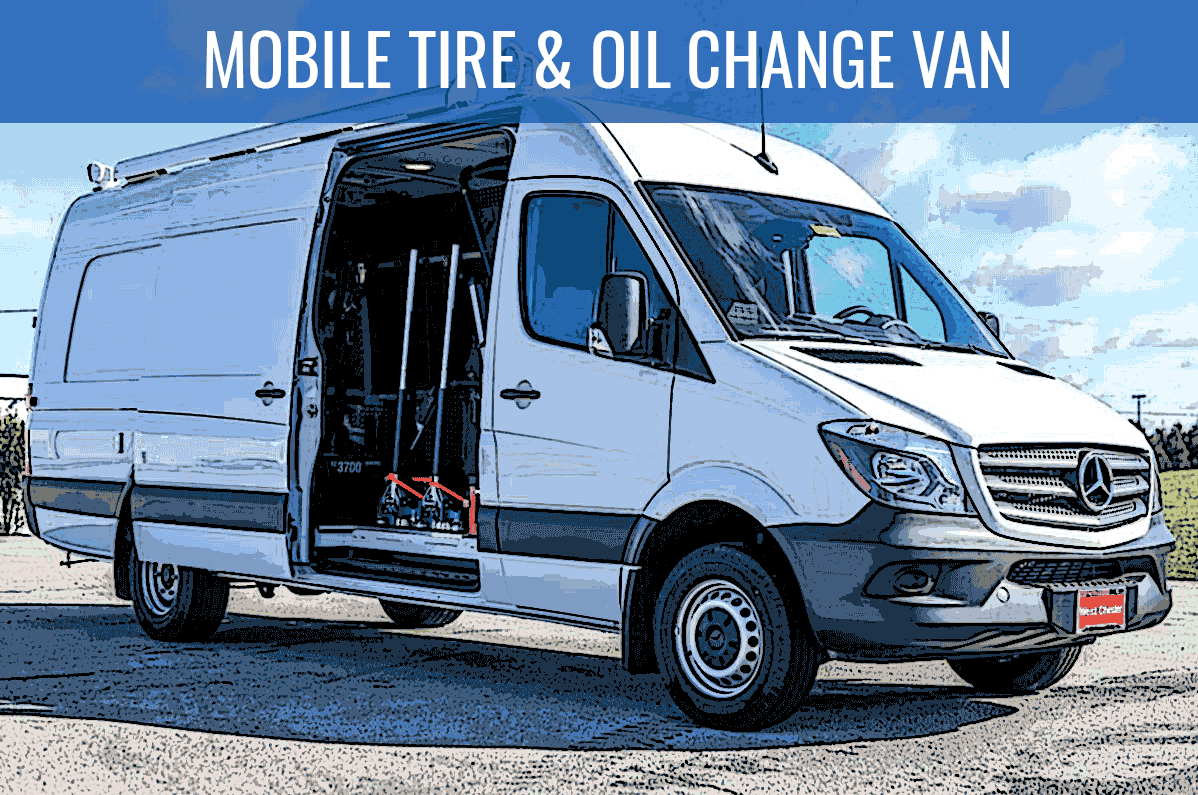

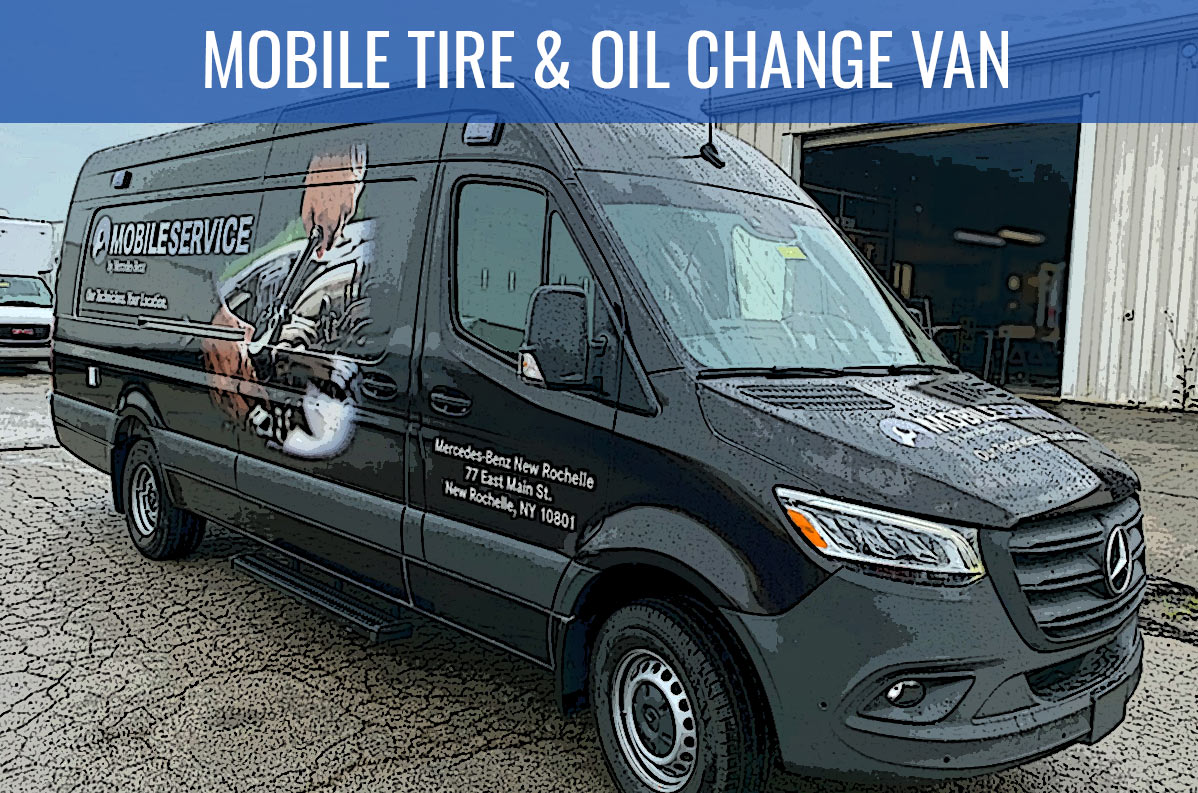

MOBILE TIRE AND OIL SERVICE VAN

Sprinter 2500 144/170″ 3500 Super Single | 170” Wheelbase | Extended Length & High Roof

Pricing

  • Mobile Tire – $79,985
    (options noted are $3695)
  • Mobile Tire/Oil – $101,485
    (options noted are $3695)

*Disclaimer – All pricing noted is subject to change and may vary based on the details of your specific build solution.

Primary Equipment: Mobile Tire

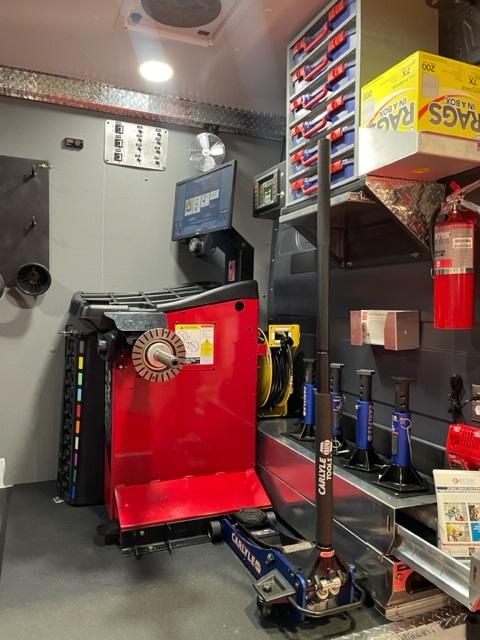

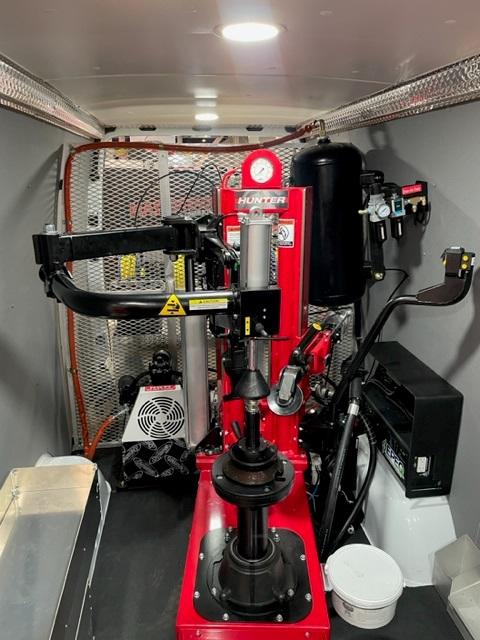

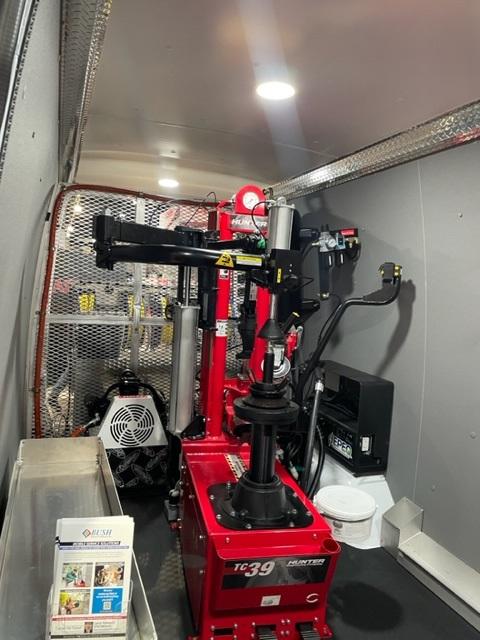

  • Hunter Engineering TC39® tire changer

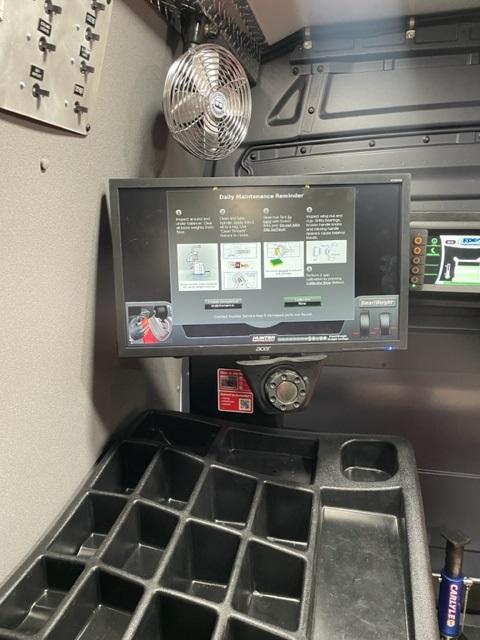

  • Hunter Engineering SmartWeight® Pro OO wheel balancer

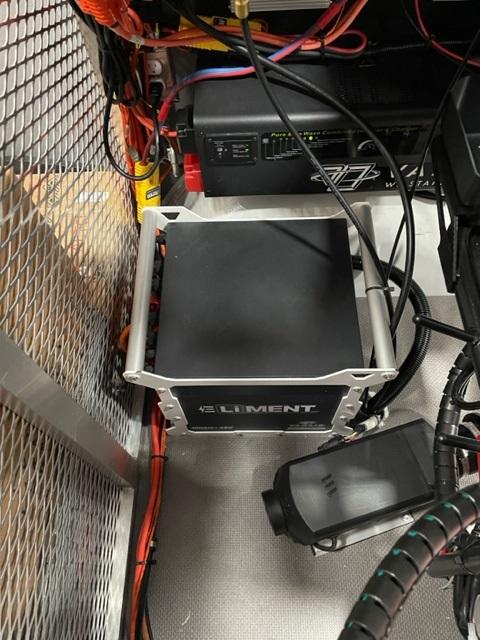

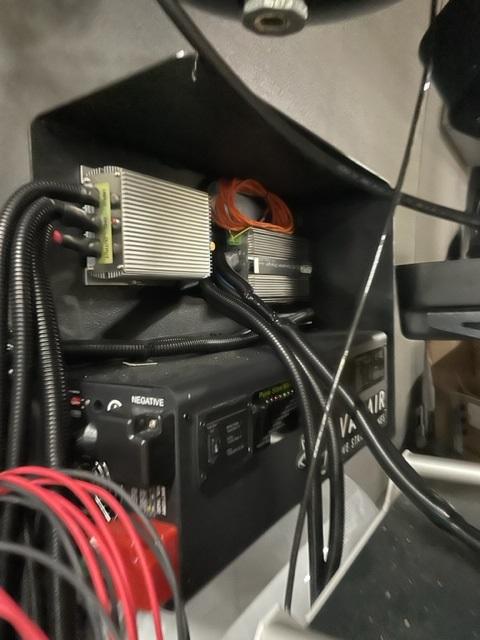

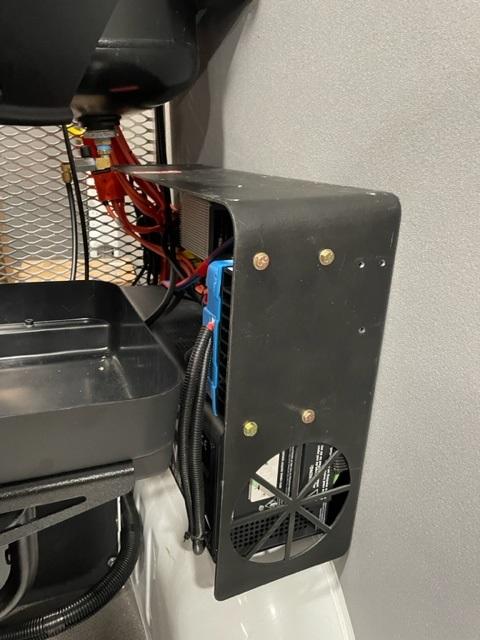

  • 6KW Vanair® inverter w/battery system & 7” control monitor
  • 20 CFM air compressor system with 20 gallon air tank
  • 50’ 3/8” air hose reel at side door entrance

Primary Equipment: Oil Change

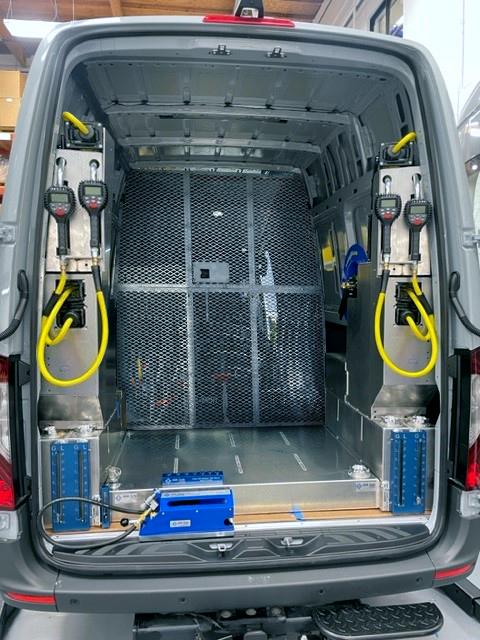

  • Four (4) 10 gallon new oil tanks (2 on left; 2 on right)
  • One (1) 28 gallon waste oil tank (center)
  • 50’ ½” hose reel for new engine oil
  • 50’ 3/8’ hose reel for oil evacuation
  • Two (2) hose reel towers and tower shrouds (1 on left: 1 on right)
  • AGA® Clean Oil remote pump with base mount
  • AGA® Clean Oil Change Tool
  • Milwaukee Vacuum™
  • Crankcase vacuum regulator kit
  • Oil level indicator
  • Chassis mount kit
  • Tower connector brace
  • Tank vents
  • Auto shut off electronic dispenser handle
  • Hi-flow 12V oil supply pumps
  • Four (4) timer/relay pump control
  • Wire package
  • Hose, fitting, connector package
  • Hardware package

Please note: Mobile Oil Service System does not include drain plugs

Electric Upfit

  • Shoreline 115v single phase
  • 115v outlets in cargo area – charging station (bulkhead)
  • 115v outlet at rear cargo (driver side)
  • 115v GFI exterior outlet
  • 230v outlets for tire changer and wheel balancer

Tool / Work Area Upfit

  • Two (2) 2-ton lightweight aluminum floor jacks
  • Four (4) 2-ton jack stands
  • Floor jack and jack stand floor mounting brackets

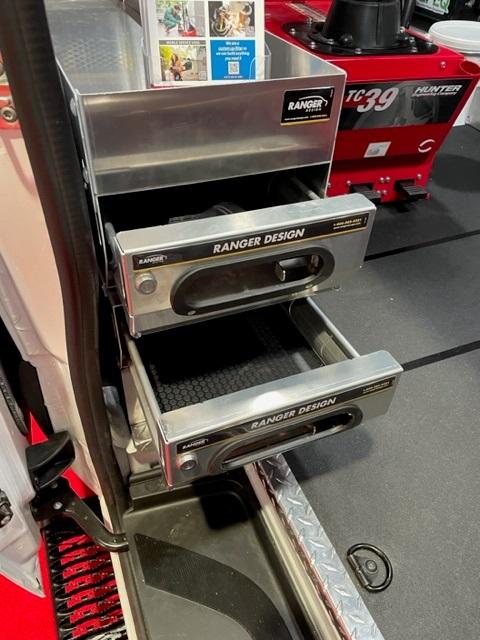

  • Two (2) Ranger™ slide out drawer toolboxes at side door entrance and curbside wall – 36” lower and 48” top drawer
    (Includes Ranger™ 5048 organizer for top drawer)
  • Two (2) 30” Ranger™ slide out drawer modules at bulkhead
  • Storage pocket for torque wrench

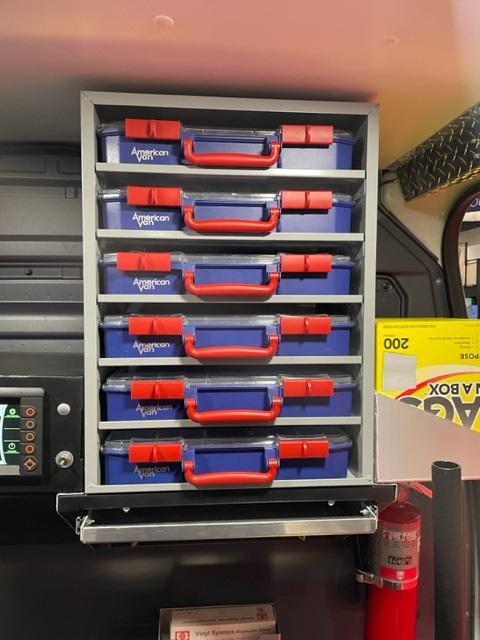

  • Six (6) drawer module on bulkhead
  • Open aluminum storage on D/S wall adjacent to wheel balancer
    24”L x 5”W x 5”H
  • Storage on top of Ranger™ storage at passenger wall – lube buckets and brushes

Cargo Area Upfit – Interior / Exterior

  • Bulkhead to separate cab compartment and cargo area
  • Four (4)  6” LED lights center of ceiling
  • Ceiling vent with 3-speed fan
  • Tire bulkhead for tire storage
  • Legend insulated wall liner kit (grey) and insulated ceiling liner (white)
  • Legend floor liner (black)
  • 3-speed fan in work area
  • Running board at side door entrance
  • Two (2) LED Scene Lights on curbside exterior

Options – Not included in total package pricing

  • Cold Weather Package: Espar diesel fired heater with thermostat controller on wall
  • 3-ton big wheel off-road jack

Pricing

  • Mobile Service/Oil 144”/170” Wheelbase – $42,945
    (options noted are $1650)
  • Mobile Service/Oil 170” Wheelbase Extended – $42,975
    (options noted are $1650)

*Disclaimer – All pricing noted is subject to change and may vary based on the details of your specific build solution.

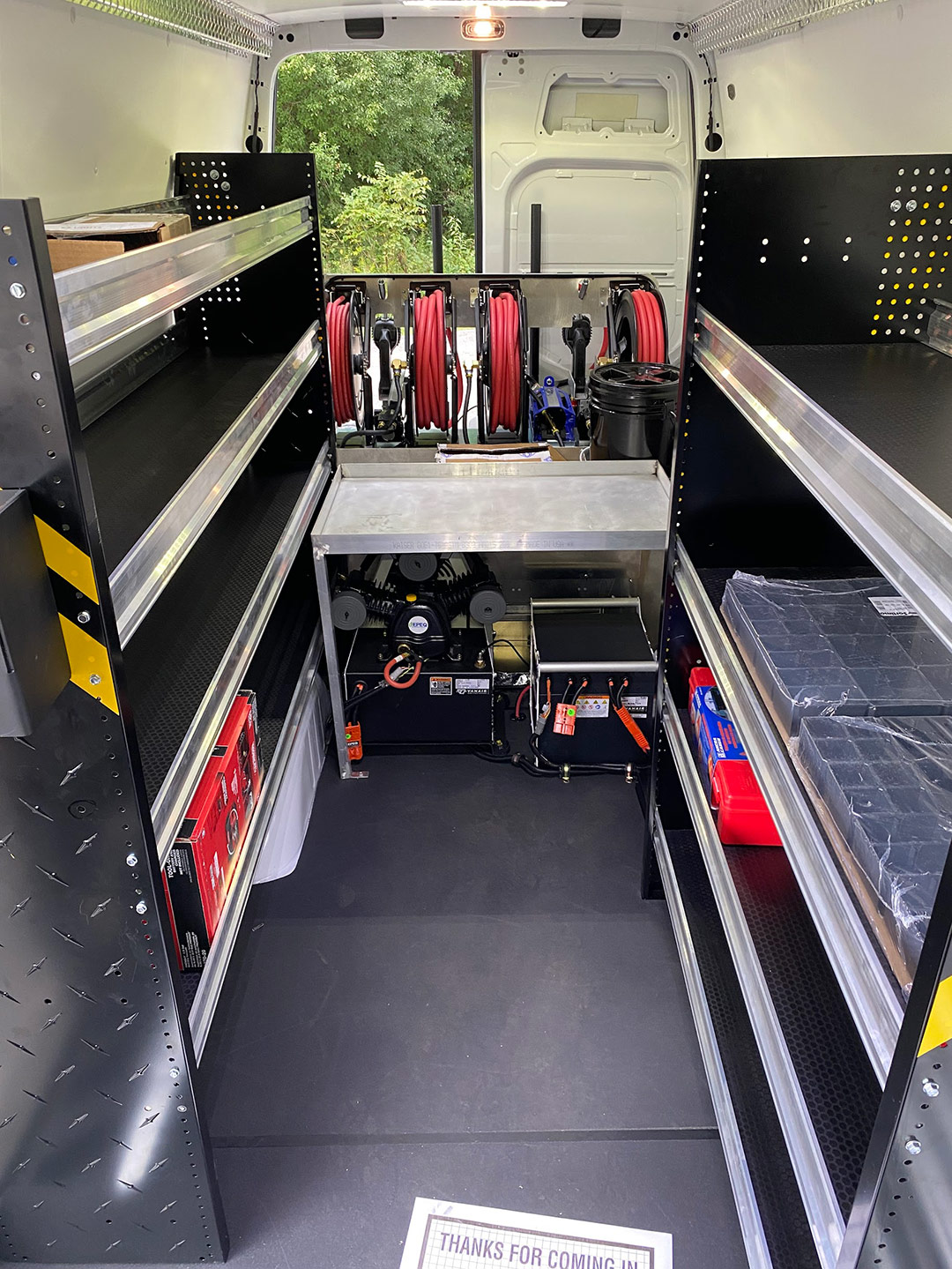

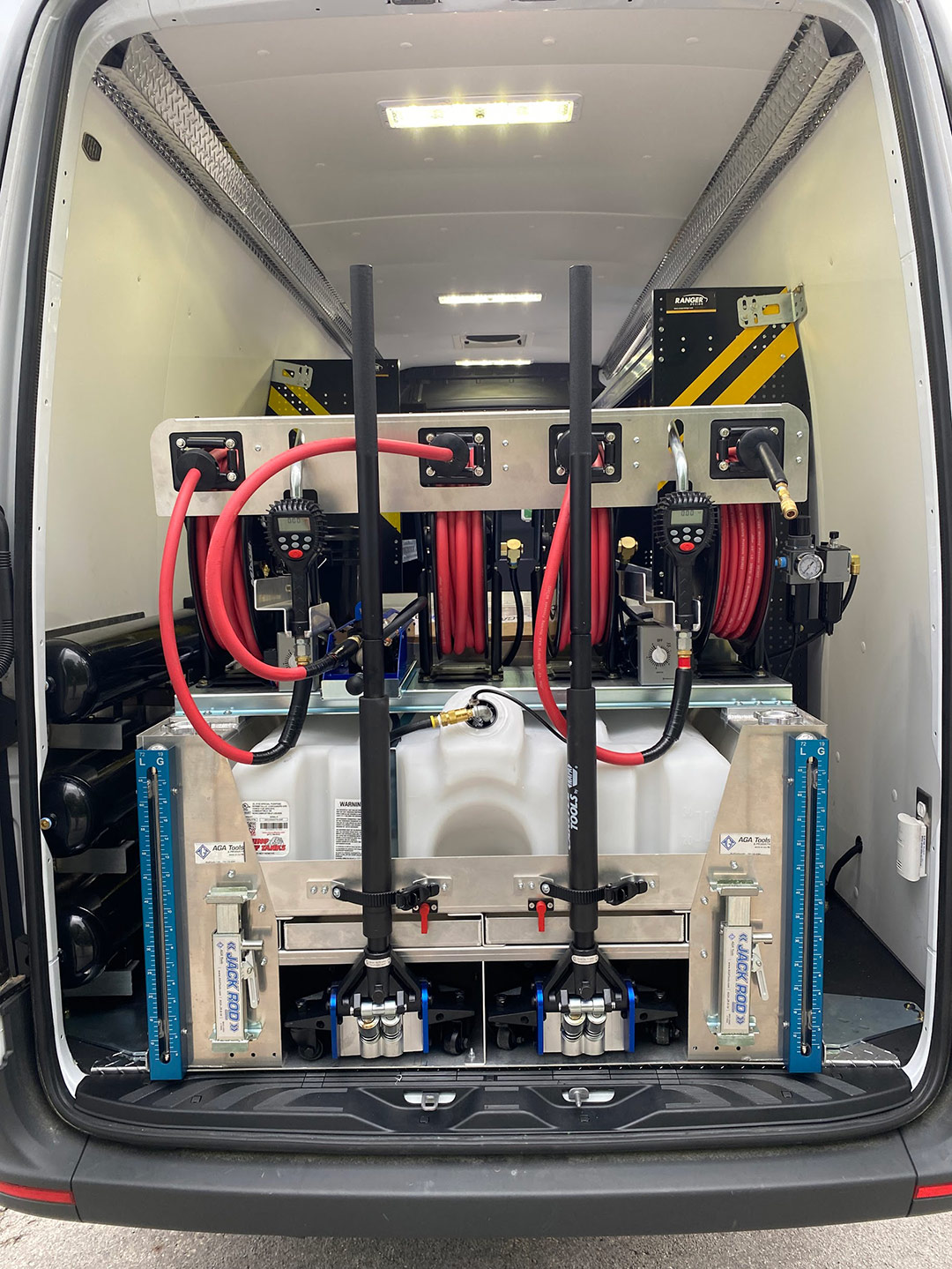

Primary Equipment:  Mobile Oil System

  • Two (2) 20 gallon new oil tanks with oil level indicator
  • One (1) 45 gallon waste oil tank

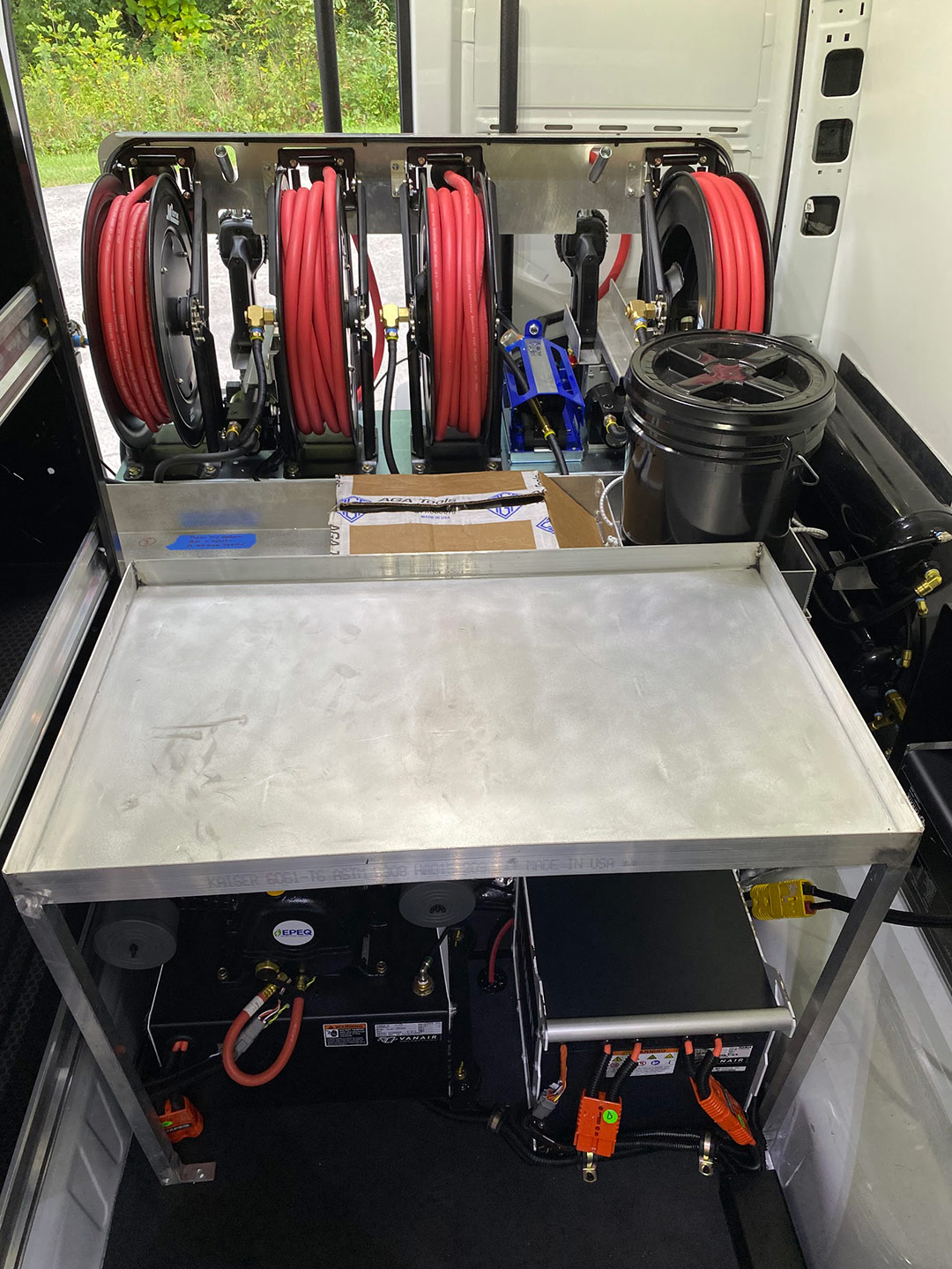

  • Two (2) 50’ hose reel for new engine oil
  • One (1) 50’ hose reel for oil evacuation
  • One (1) 50’ air hose reel
  • Two (2) high flow pumps for fresh oil delivery
  • Two (2) dispenser handles with receptacles
  • Two (2) pull out spill trays
  • One (1) evacuation pump (battery not included)
  • One (1) Clean Oil Drain Tool
  • One (1) Crankcase Vacuum Regulator
  • Two (2) Jack Rod Stands
  • Two (2) Universal Floor Jack Storage Pockets
  • One (1) Milwaukee Vacuum – battery not included

Note: Mobile Oil Service System does not include drain plugs

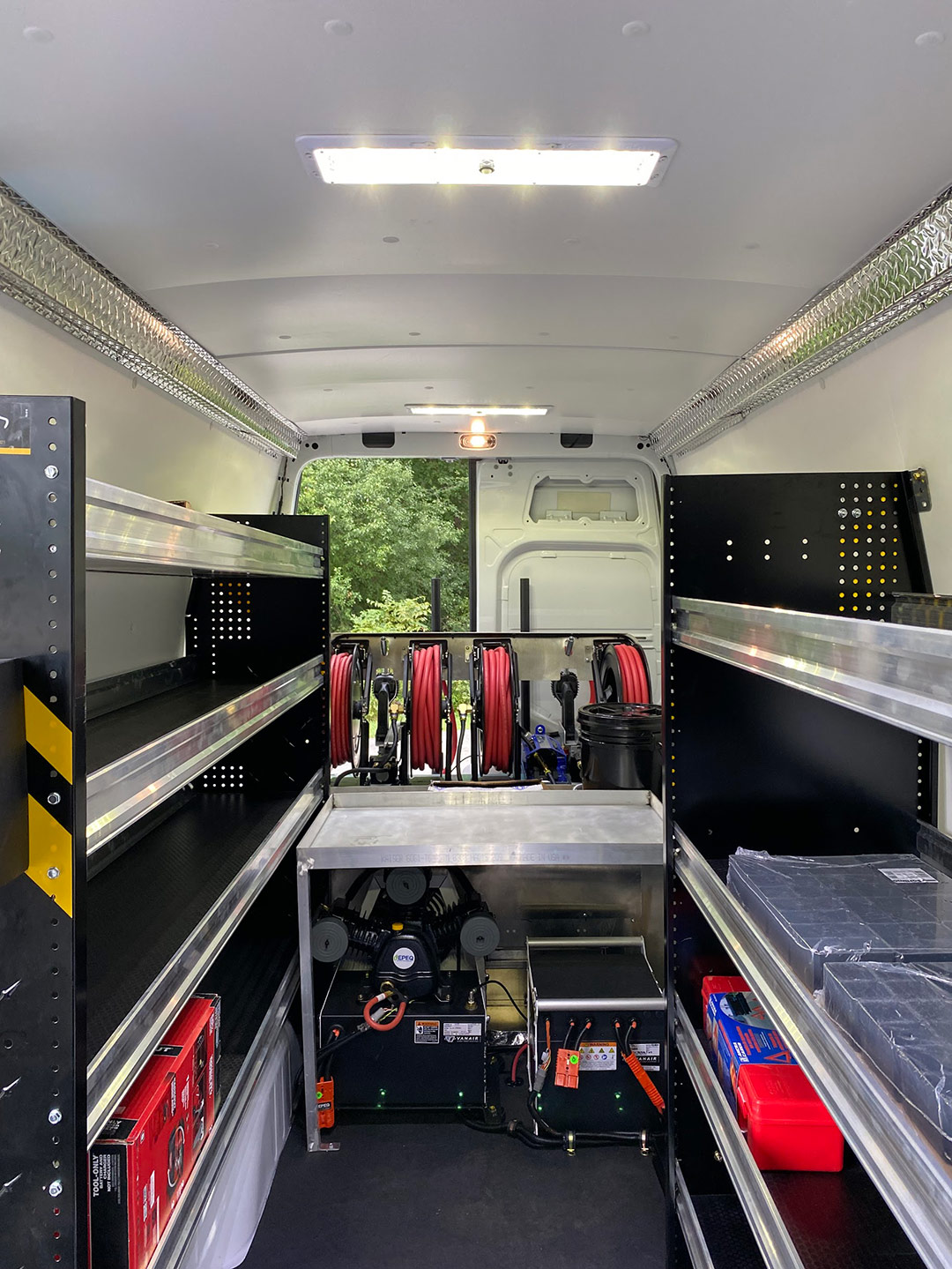

Primary Equipment: Air Compressor

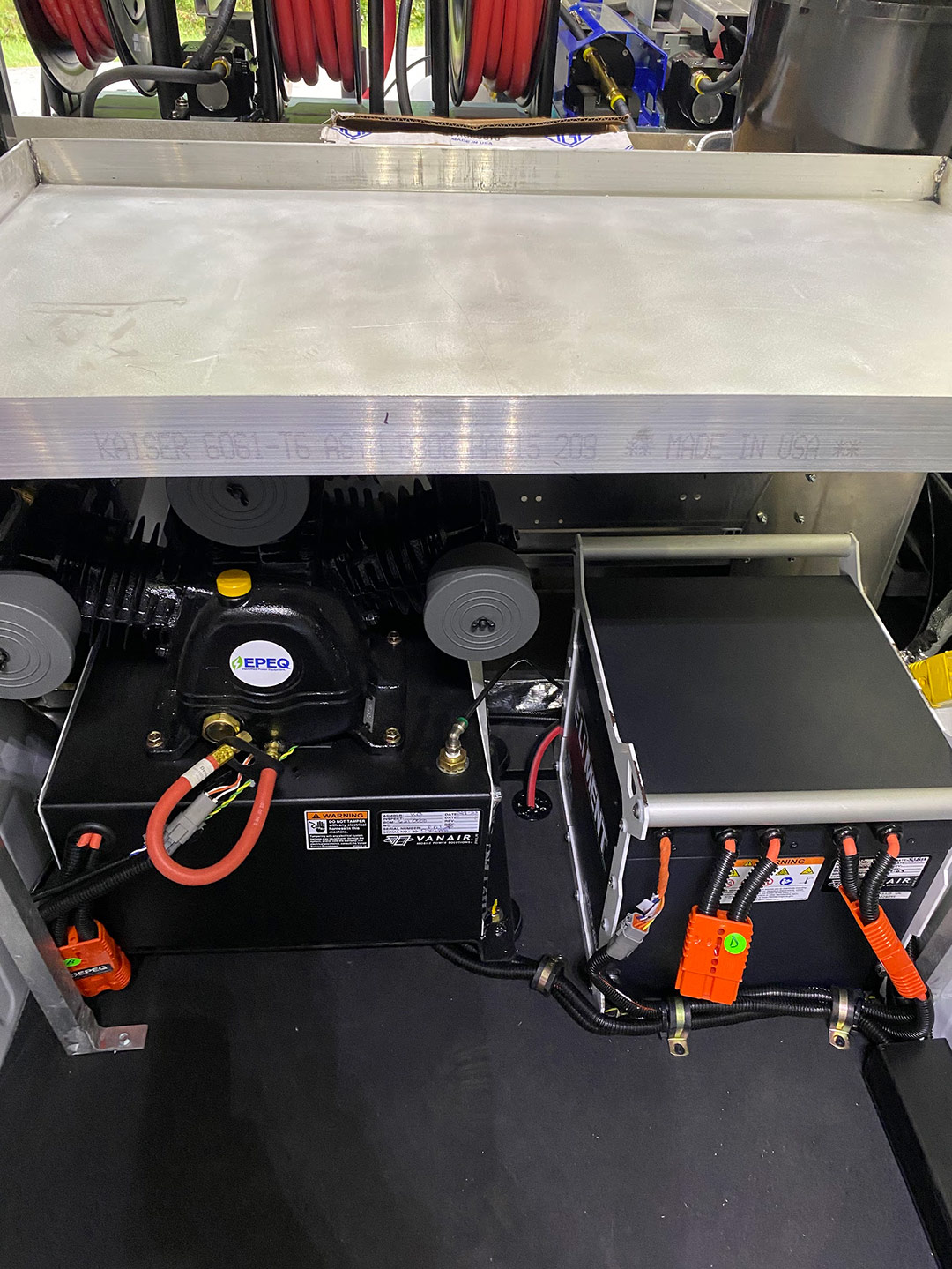

  • 6KW Vanair® inverter w/battery system & 7” control monitor
  • 20 CFM air compressor system with 20 gallon air tank

Electric Upfit

  • Shoreline 115v single phase (charge batteries)
  • 115v outlets in cargo area – charging station (bulkhead)
  • 115v outlet at rear cargo (driver side)
  • 115v GFI exterior outlet

Tool / Work Area / Safety Upfit

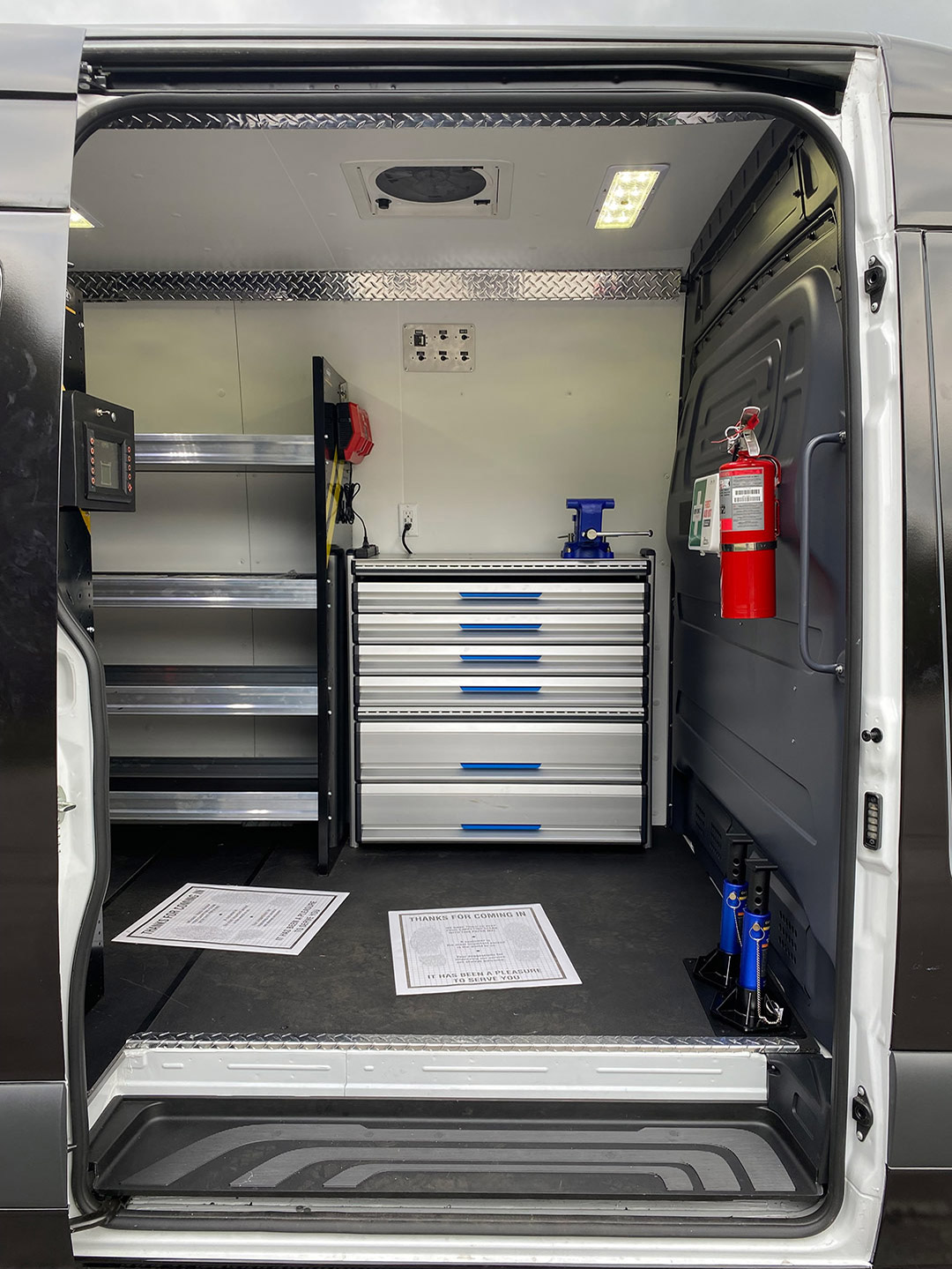

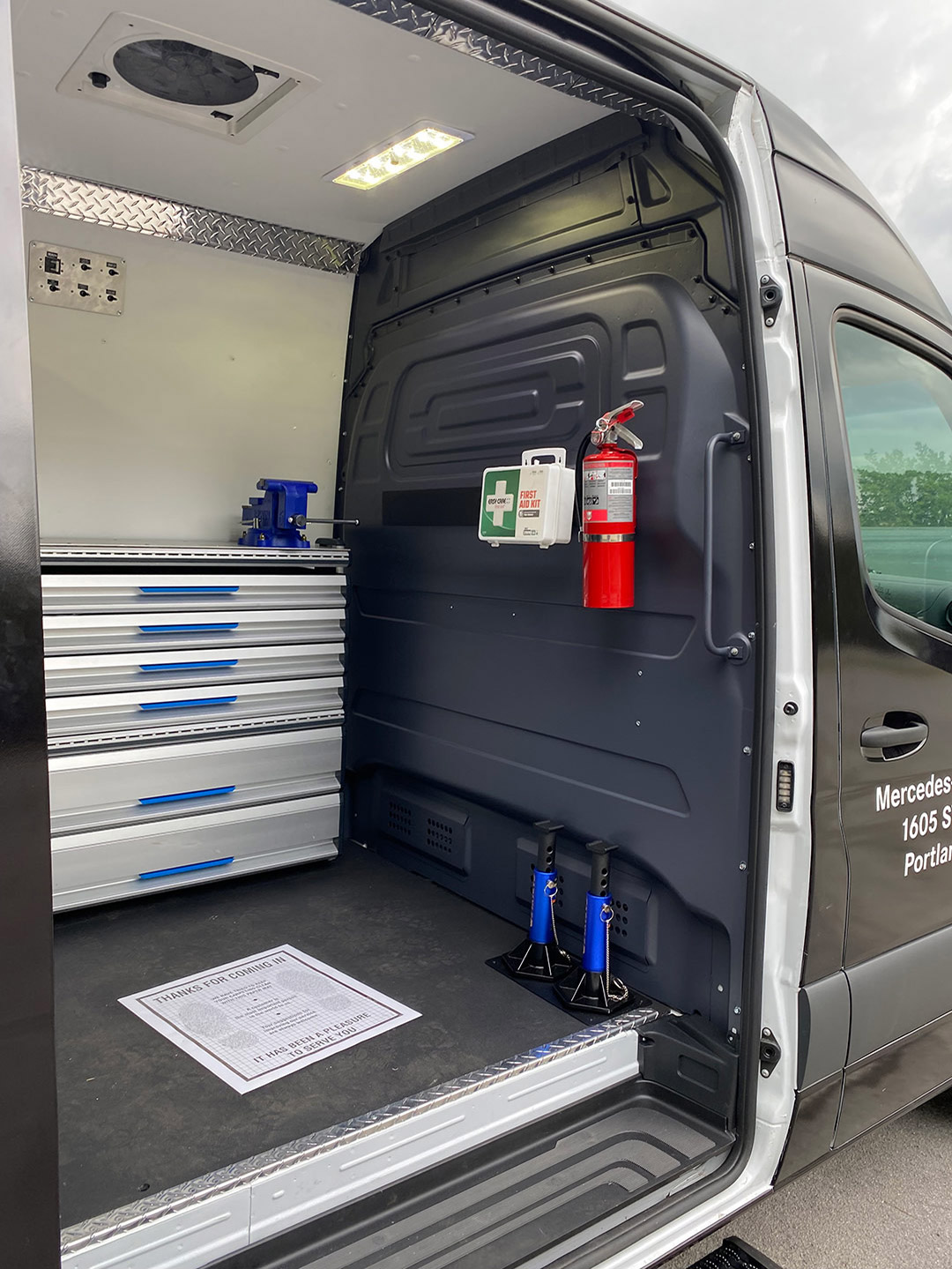

  • 48” (approx..) work bench with vise and drawer under bench for tool storage to hold the VCM Tool Kit

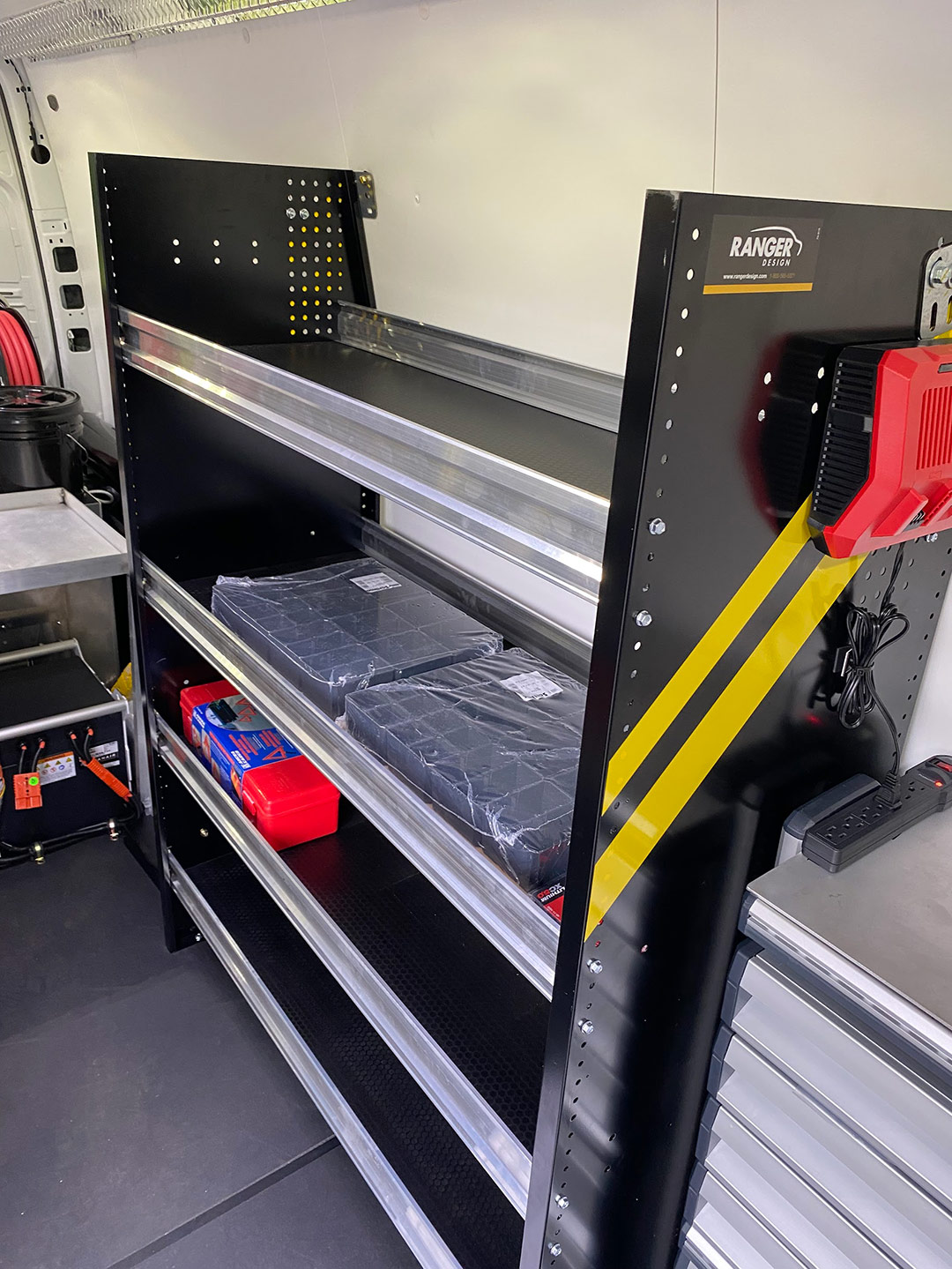

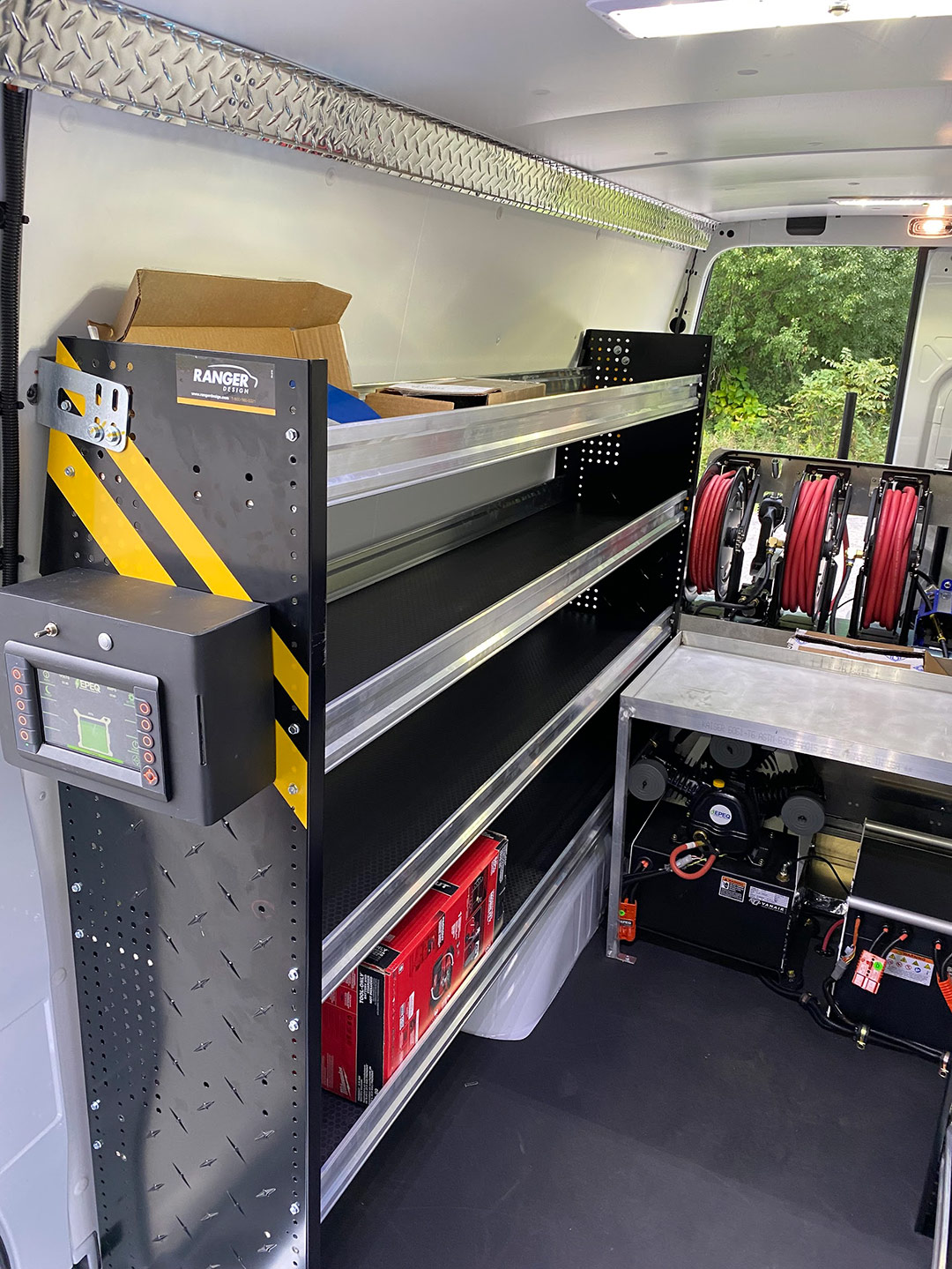

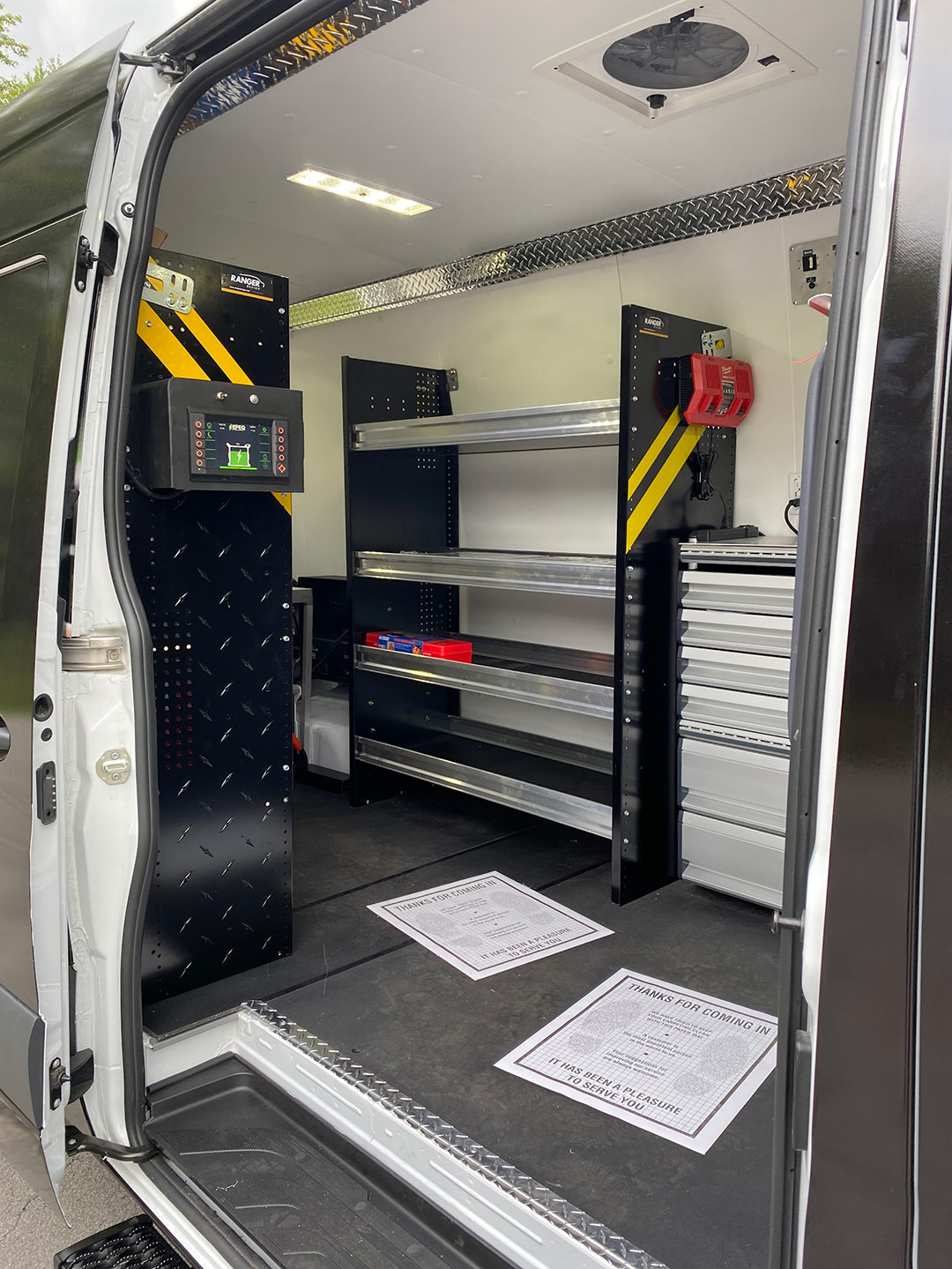

  • 72” L Shelving – 4 Rows with dividers

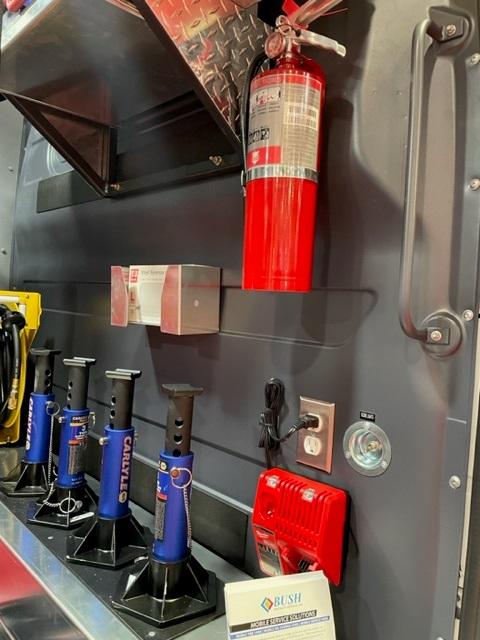

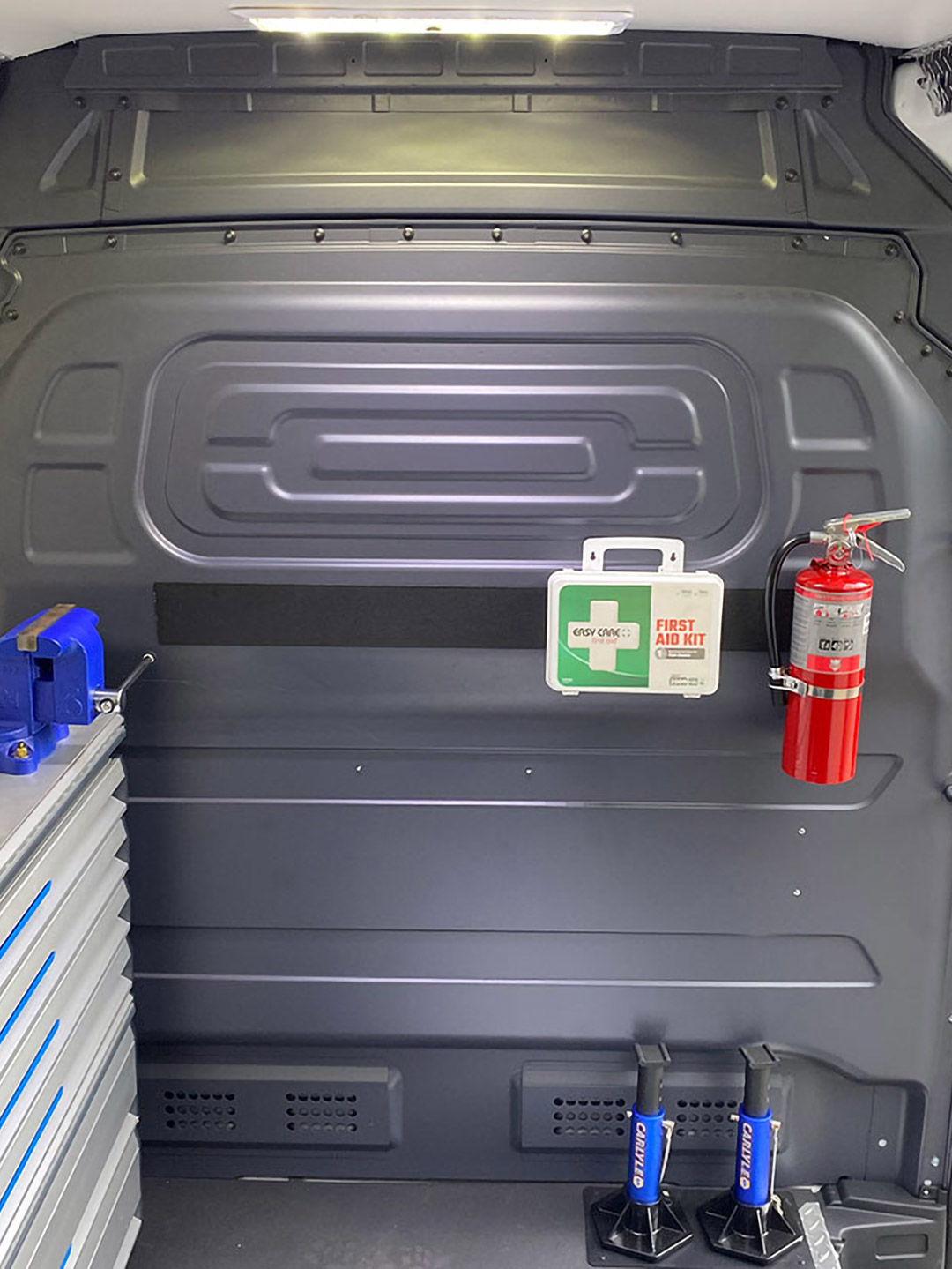

  • 5lb fire extinguisher
  • First aid kit
  • Triangle safety kit
  • Carbon monoxide detector

Cargo Area Upfit – Interior / Exterior

  • Bulkhead to separate cab compartment and cargo area
  • Bass Panel
  • Legend insulated wall liner kit (white)
  • Running board at side door entrance
  • Step @ rear door
  • Document box (folder holder)

Options

  • Milwaukee battery charger and Two (2) 18v 5A Batteries – will need for Milwaukee vacuum and evacuation pump for mobile oil
  • Legend composite flooring
  • Fantastic 3 speed roof vent
  • Two (2) 2 Ton Lightweight Aluminum Floor jacks

TRAINING VIDEOS & TECHNICAL INFORMATION

Getting the Most from Your Mobile Service Van

The training videos below are designed to provide context and training for the key components of your mobile service van.  We’ve developed these videos to make it simple to find the information you need and to equip you with the tools and training to deliver mobile services to your customers.

WHEEL BALANCER

How to use the SmartWeight® Pro Wheel Balancer from Hunter Engineering.

          Wheel Balancer Operation Manual

HOW TO USE ELECTRIC STANDBY

How to plug in your vehicle to provide power when the vehicle is not running.



TIRE CHANGER

How to use the TC39 tire changer from Hunter Engineering.

          Tire Changer Operation Manual

EPEQ FEATURES & OPERATION

EPEQ Features & Operation.



This section is designed to address common questions and to show you how to resolve issues that are frequently seen in the use of these vehicles.

Q. Who do I contact for Hunter tire equipment service?
A. Click on link below and click on support tab. Enter your zip code.
https://www.hunter.com

Q. Who do I contact for questions related to inverter/air system or miscellaneous upfit questions or concerns?
A.
Please contact Don Goetz our Quality Assurance/ Customer Service Manager Donald.goetz@bushtrucks.com or call 513-581-1221

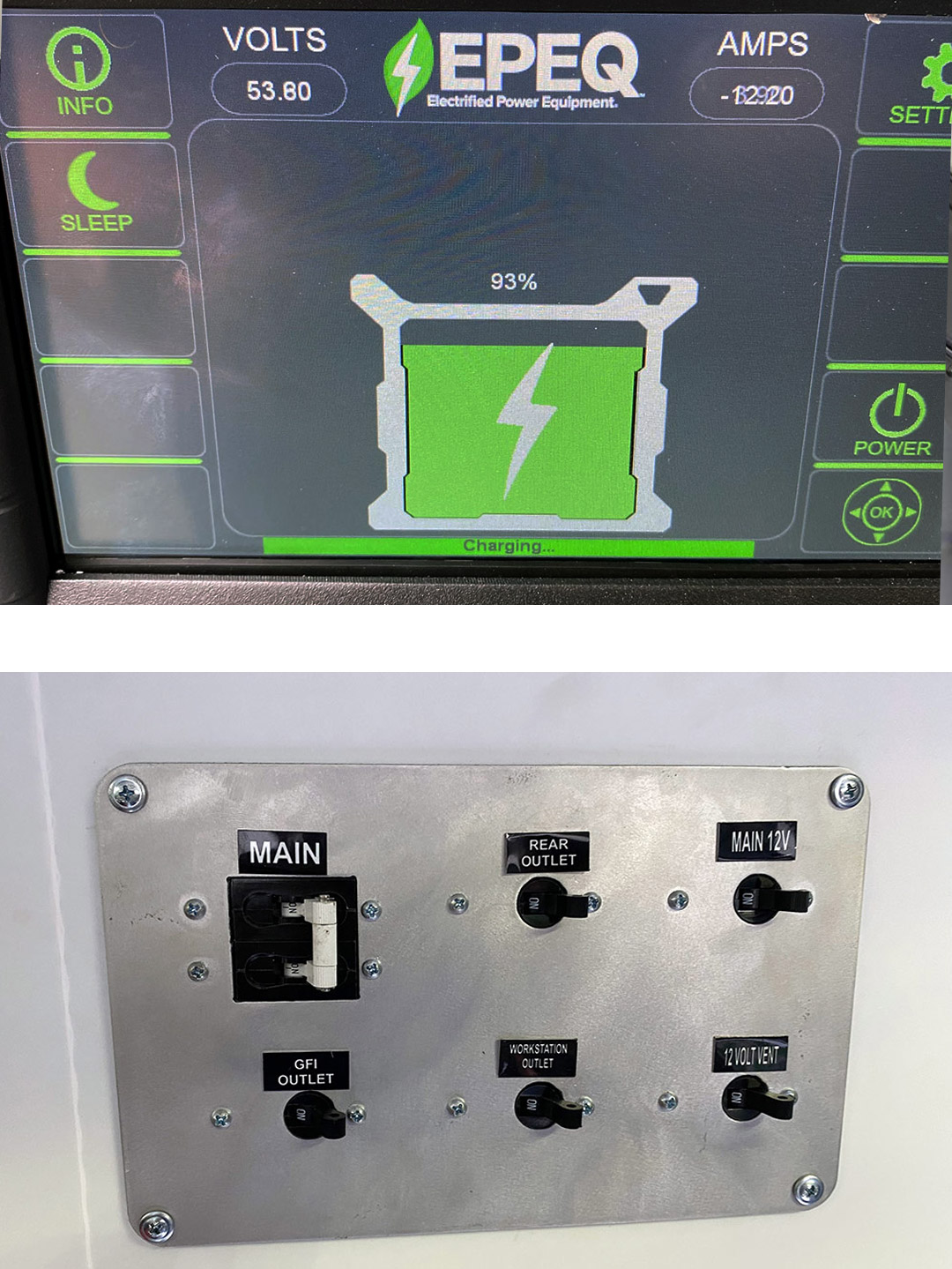

Q. How do I charge the Vanair EPEQ Battery?
A. Option 1 - The battery charges via the manufacturer alternator when the vehicle is running.
Option 2 – The battery can be charged via shoreline – Utilize shoreline plug mounted on exterior drivers side of van and plug into 115V outlet 30AMP receptacle

All warranty claims related repairs/issue should be directed to Bush Specialty Vehicles for consideration. Bush will instruct the repair facility to diagnose issue(s). Bush will communicate with the vendor to determine issue and root cause. If part is deemed warrantable item, Bush will approve repairs. Any repairs deemed neglect or abuse will be communicated prior to approving repairs.

Please note that Bush is a member of National Truck Equipment Association (NTEA) and will utilize the NTEA network for repairs.  Labor rates will vary depending upon vendor.

Bush Customer Service & Warranty Assistance
Monday – Friday : 7 a.m. – 4 p.m. EST
Toll Free (866) 604-2874
Kendall Johnson: Mobile Tire Shop Manager (513) 316-4478
Don Goetz (513) 581-1221

AGA Oil system Warranty
One (1) year

Solar Panels
One (1) year

Floor, Ceiling  and Wall Liner
Floor and Wall Liners are warranted against expansion and contraction or any bowing or flexing of the material as this is the nature of these types of materials. Wear and tear is not covered under this warranty. Defective material will be replaced; however maximum liability for all claims is limited to the purchase price of the goods referred to above.

Floor Jacks and Jack Stands
One (1) Year

3/8” 50’ Hose Reel
One (1) Year

Safety Kit - Install 5LB Fire Extinguisher, Eye Wash Station and First Aid Kit
Ninety (90) Days

Miscellaneous Items
- One (1) Year
- 30 AMP Marinco Shoreline Power
- LED ceiling lights
- 110v outlets
- Circulating Fans

Espar Heaters
Two (2) Years/2000 Hours

Fantastic Vent
One (1) Year

Exterior Scene Lights
One (1) Year

Ranger Drawers and Yellow Grab Handles
Ten (10) Years

American Van 6 Drawer Cabinet
One (1) Year

Retractable Ratchet Straps
Six (6) Months

Bush Custom Fabrication
One (1) Year (Material)
Six (6) Months (Labor)

Running Boards
Three (3) Years

Limited Lifetime Warranty
This Limited Lifetime Warranty is the only warranty made in connection with your SuperSprings product. SuperSprings neither assumes nor authorizes any vendor, retailer or other person or entity to assume for it any other obligation or liability in connection with this product or Limited Lifetime Warranty

What is Covered?
Subject to the terms, exclusions and limitations herein, SuperSprings International, Inc. warrants to the initial purchaser only that its SuperSprings product shall be free of defects in material and workmanship from the date of purchase for as long as said purchaser owns the vehicle upon which the product was installed; excluding all commercial applications. All commercial applications are warrantied for a term of 3 years commencing upon the date of purchase. Please note that this warranty shall only apply to products purchased from a SuperSprings authorized seller that is subject to and follows SuperSprings’ quality controls, unless otherwise prohibited by law. SuperSprings reserves the rights to: (a) require the warranty claimant’s proof of purchase as a condition of this warranty, (b) make future revisions to its warranty without prior notice.As used herein, “commercial applications” means any vehicle intended, licensed or used (partially or otherwise) in connection with a business and shall include but not be limited to “Commercial Motor Vehicles” as defined or intended by the U.S. Code of Federal Regulations.

ALL OTHER EXPRESS OR IMPLIED WARRANTIES INCLUDING MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY LIMITED IN DURATION TO THE DURATION OF THE WARRANTY AS DESCRIBED ABOVE. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

What is Not Covered?
Your Limited Lifetime Warranty does not cover any damage arising or related to any vehicle, product, or component combination other than the SuperSprings product. Your SuperSprings Limited Lifetime Warranty further does not cover vehicles, products or components supplied by us or others that SuperSprings determines to have been damaged by or subjected to:

  • Vehicle use in excess of gross vehicle weight rating, combined vehicle weights / tow ratings or other Original Equipment Manufacturer design specifications or limitations.
  • Normal wear and tear, deterioration of spring shape or rating, alteration, product modification, improper installation.
  • Scratches or defects in product finishes (powder coating, paint, etc.) or damage due to shipping. ·
  • Abnormal or misuse, including products used other than as recommended in the current SuperSprings application guide or the instructions.
  • Racing or other vehicle competitions or contests. ·
  • Accidents, impact by rocks, trees, obstacles or other aspects of the environment. ·
  • Heavily loaded commercial use on unpaved road conditions.

Remedy Limited to Repair / Replacement
The exclusive remedy provided hereunder shall, upon SuperSprings’ inspection and option, be either repair or replacement of the product or parts covered under this warranty. Customers requesting warranty coverage should contact SuperSprings to obtain a Returned Merchandise Authorization number. All removal, shipping and installation costs are the customer’s responsibility. If a replacement part is needed before yours can be returned, you must first purchase the replacement part. Then, if SuperSprings deems your part to be covered under a valid warranty claim, you will be credited the purchase price. Your warrantor is SuperSprings International, Inc., service at (805) 745-5553, warranty@supersprings.com, or the address indicated in the header of this document.

Other Limitations – Exclusion of Damages – Your Rights under State Law
Six (6) Months

Hunter Engineering Company warrants new equipment to be free from defects in material and workmanship under normal conditions of use for a period of three (3) years from the date of installation. Exceptions to this warranty are listed below.

  • Field labor is covered under this warranty for a period of six (6) months.
  • ADASLinkTM units carry a one (1) year warranty and remain under warranty as long as a subscription is maintained thereafter.
  • DAS 3000 units, including electronic circuit boards, carry a one (1) year warranty.
  • Printers carry a one (1) year warranty.
  • Normal consumables and wear items are not covered. Exception is batteries, which are warranted for a period of six (6) months.
  • Product that has been subject to abuse, misuse, alterations, accident, exposure to the elements tampering, unreasonable use, or not maintained in a reasonable or necessary manner.
  • Replacement parts purchased through the Hunter Service Center and no longer covered by machine warranty are warranted for a period of six (6) months.

In case of any warranty claim, it will be necessary to contact your local authorized Hunter Service Representative. To have an item considered for warranty, it must be returned to Hunter Engineering Company for inspection and evaluation. This must be done on a freight prepaid basis. If after our inspection the product proves to be defective, and is within the time frame specified, we will repair or replace the item at no additional cost.

This is Hunter Engineering Company’s only warranty with respect to new equipment. Hunter Engineering Company disclaims all other warranties to the extent permitted by law. This express warranty and any implied warranties of merchantability and fitness for a particular purpose shall not extend beyond the warranty period. Hunter Engineering Company is not responsible for any incidental or consequential damages, including, but not limited to, loss of business.

We do not authorize any person to assume for us any other liabilities with our products. Any remaining warranty may be transferred to subsequent purchasers by forwarding the purchaser’s name, address, phone number and equipment serial number to:
Hunter Engineering Company
Customer Service Department
11250 Hunter Drive
Bridgeton, MO 63044
(800) 448-6848

Workmanship under normal conditions of use for aperiod of one (1) year from the date of installation.
Exceptions to this warranty are listed below.

  • All circuit boards are warranted for a period of three (3) years.
  • PC’s and options installed inside the PC are warranted for a period of three (3) years.
  • LCD’s are warranted for a period of three (3) years.
  • Power supplies are warranted for a period of three (3) years.
  • Transducers are warranted for a period of three (3) years.
  • Wheel Balancer motors are warranted for a period of three (3) years.
  • Wheel Balancer shafts are warranted for a period of three (3) years.
  • Tire Changers are fully warranted for a period of three (3) years with the exception of consumable parts and TCR1 power units.
  • All lift and Hunter TCR1 power units are warranted for a period of two (2) years.
  • Normal wear items are not covered with the exception of batteries, which are covered for a period of six (6) months.
  • Replacement parts purchased through the Hunter Service Center and no longer covered by machine warranty are warranted for a period of six (6) months.

Warranted parts may be replaced with new or refurbished parts at the discretion of Hunter Engineering Company.

This warranty does not include normal wear items and does not apply to any product which has been subject to abuse, misuse, alterations, accident, exposure to the elements, tampering, unreasonable use, or failure to provide reasonable and necessary maintenance.

All warranty claims must be made to your local Hunter Service representation. Labor warranties can vary and additional policies and restrictions may apply.

This is Hunter Engineering Companies’ only warranty with respect to new equipment

See our document library at www.Hunter.com for additional details.

CONTACT INFORMATION

larry-vanover-blue-bg

Larry Vanover | (513) 600-6223 | larry.vanover@bushtrucks.com

To add a mobile service vehicle to your fleet or to learn more, please contact me directly.
I look forward to supporting the success and growth of your dealership!
